Stainless Steel Safety Couplings for Industry

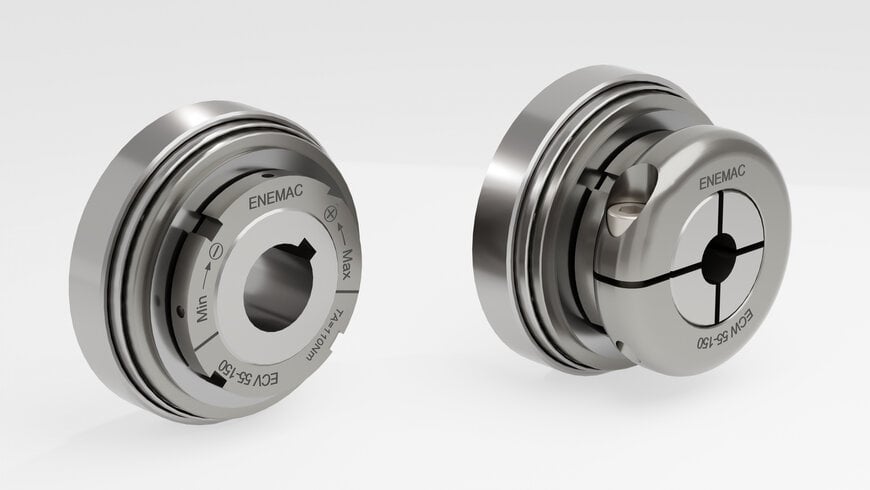

ENEMAC is expanding its component range with the new ECV and ECW series stainless steel safety couplings, specifically designed for chain and timing belt drives. These mechanical devices are aimed directly at the food and beverage industry, packaging technology, pharmaceutical production, as well as medical technology and cleanrooms.

Transmission Challenges in Hygienic Environments
Health and food-related industrial facilities require machinery capable of withstanding intensive cleaning and disinfection processes. Standard transmission components are at risk of rapid corrosion from detergents or generating contaminating particles. It is therefore essential to integrate torque limiters capable of resisting these aggressive washdowns while effectively protecting indirect drive systems against unexpected mechanical blockages.

Mechanical Architecture and Torque Limitation
To provide this protection without compromising hygiene, the entire construction of these couplings is made of stainless steel. In the event of a system blockage or overload, these units instantly limit the transmitted torque, thereby preserving the drive components from costly mechanical damage. A specific engineering decision involves the disc springs integrated into the mechanism: they are intentionally left uncoated. This lack of surface treatment minimizes the risks of flaking, underlying corrosion, and particle formation during washdowns, ensuring a compact and maintenance-free solution.

Technical Specifications and Shaft Connections
Both series offer technical coverage suited for heavy industrial loads, managing a torque range from 5 to 900 Nm and reaching maximum rotational speeds of 4,000 rpm. The units are structured to withstand significant lateral loads of up to 30,000 N, which is crucial for belt and chain tensioning. To adapt to different machine architectures, the ECV series features a keyway shaft-hub connection for traditional mechanical locking, while the ECW series incorporates a clamping ring hub, ensuring a backlash-free friction connection for more dynamic transmission.

Additional Context
This section details technical specifications and competitive benchmarking not included in the original product announcement

In the specific market for torque limiters in aseptic and washdown environments, the ENEMAC ECV and ECW ranges are positioned against established solutions such as Mayr's EAS safety couplings or KTR's stainless steel limiters. The major technical advantage of the ENEMAC series lies in their ability to absorb extreme radial loads (up to 30,000 N), making them particularly suitable for heavy, wide belt drives where competing couplings often require additional external support bearings to prevent deformation. Furthermore, the approach of using uncoated disc springs differs from certain industry standards that rely on epoxy or zinc-nickel coatings, which can micro-crack under high-pressure water in food industry applications.

Edited by Maria Brueva, Induportals editor – adapted by AI.

www.enemac.eu
