New DC Platform: Interroll presents an innovative drive solution

Sant'Antonino, Switzerland, February 19, 2019. Interroll is setting new standards in modern material flow technology. Interroll’s innovative range of coordinated RollerDrive products, control systems and power supply elements positions system integrators and plant constructors to now provide even more individual solutions for their customers, from plug-and-play standard applications to systems with Industry 4.0 functionality.

New DC Platform: Interroll presents an innovative drive solution

The requirements placed on zero-pressure-accumulation material flow systems are becoming more demanding in terms of their technical performance. For a while now, users have required more than simply high throughputs or versatility in terms of the goods to be transported. As automation becomes more common, intelligent goods flow control plays an ever more significant role in conveyance systems. With the DC Platform, Interroll has developed a powerful technology platform that fulfills these requirements in an exemplary manner.

"With the new DC Platform, system integrators and plant constructors can choose from an innovative, coordinated range of technological solutions from a single supplier, all based on years of development and testing," explains Armin Lindholm, Managing Director of the global Center of Excellence for rollers and RollerDrive in Wermelskirchen. "It enables them to deal with users' requirements in a more individual manner. This new platform can be used to create a unique range of conveying solutions, from autonomous conveyors that can be commissioned without a programmable logic controller (PLC) using plug-and-play, all the way to tailor-made, high-performance systems that can be consistently and transparently integrated into the data universe of Industry 4.0 applications for the purpose of monitoring in control stations, for preventive maintenance or for other functions."

Experience the benefits of 48 V technology

The new modular platform makes it possible for system integrators and plant constructors to design conveying systems according to customers' requests in both 24 V and 48 V versions. With this step, Interroll is driving the technical evolution of protective low-voltage solutions that has been sketched out by automotive manufacturers. 48 V systems therefore enable the use of up to 50 percent fewer power supply elements than in 24 V systems. They enable the use of smaller wire cross-sections and longer wire lengths, and reduce the number of error sources, for instance as a result of voltage drops on the wires. This significantly reduces the investment required in the entire system and the risk of errors during commissioning.

Three power levels to choose from with the new RollerDrive

However, customers don't just have more options when it comes to the voltage type of the new DC Platform. The new RollerDrive EC5000 also offers more flexibility in terms of its mechanical output power. The new motor rollers are available in 20 W, 35 W and 50 W versions that can take on any transport tasks for light or heavy goods. To support the implementation of conveyor solutions for heavy goods, Interroll offers the 50 W power option as well as a RollerDrive version with tubes measuring 60 mm in diameter instead of 50 mm. What's more, the well-known IP66 and Deep Freeze design options are available; these enable RollerDrive solutions to be implemented even in areas that are cleaned using powerful water jets or that reach temperatures as low as -30° C.

Bus interface opens the door to Industry 4.0


Alongside the tried-and-tested analog interface, the EC5000 can be supplied with a bus interface based on the CANOpen standard, upon request. This means that modern conveying systems can offer data transparency for the first time. In combination with an Interroll control system with multi-protocol capability (PROFINET, EtherNet/IP and EtherCat), this means that users can consistently visualize a range of information and functions on the screen using the PLC or a web interface. One example is the display of general information about the current operating state and the operating load of the individual drives over time. In parallel, the control systems enable a range of detailed information such as precise error statuses, torque or temperature, for instance, to be read out for each individual drive.

At the same time, the new RollerDrive's bus interface enables users to carry out completely new control functions that are required in an automated environment. As a result, users can control the acceleration, speed and deceleration of the conveyed goods in the system more precisely. This solution also allows them to position the relevant goods on the conveyor to the nearest millimeter—a key requirement in order to guarantee seamless conveying interplay between the conveyor solution and robots or automated gripper arms.

LogiMAT 2019 visitors can find Interroll at Stand K41 in Hall 1.


New DC Platform: Interroll presents an innovative drive solution

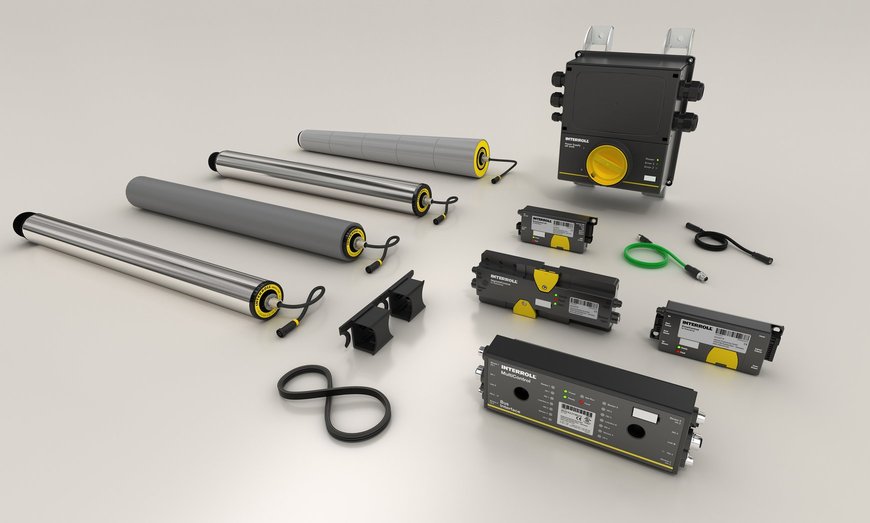

Image: With the new DC Platform, Interroll offers Industry 4.0 functionality for material flow.
