BAK Food Equipment Offers Tumblers with a Range of Functionalities

BAK Food Equipment introduces Nowicki tumblers in North America, offering various sizes and functionalities for food processing applications, catering to various applications.

All tumbling solutions from BAK Food Equipment feature a welded stainless-steel construction that meets the highest hygienic requirements, ensures easy operation, and offers cleanliness and a long machine life. Most units also feature an advanced control system, giving operators full command over all marinating parameters, including the temperature inside the drum, drum vacuum level, rotational rpm of the drum, massage time, and overall interval time.

Nowicki’s MA series horizontal vacuum tumblers can be filled by traditional loading systems or vacuum-based loading systems. Before tumbling begins, an optional mechanized port cover automatically swings closed. The drum vacuum systems include reliable Busch-brand vacuum pumps as standard, along with a multistage vacuum pump protection system.

The Nowicki MA-P-2500PS horizontal tumbler features front and rear ports with covers. The two-port design allows loading from one end and unloading from the opposite end, which makes this tumbler ideal for incorporation into automatic meat-processing lines. The two-port nature of the Nowicki MA-P-2500PS meat tumbler also makes the machine exceptionally easy to keep clean.

The Nowicki MA-1200 PT meat tumbler features a pass-through design for especially efficient marination. Controls allow end users to select from 30 different programs via a touchscreen operator panel. MA-1200 PT meat tumblers can process meat and marinade loads as large as 1,322 pounds.

MA-G and MAH-G series Nowicki food tumblers can perform several processes, including tumbling, brewing, cooking, curing, traditional massaging, and cooling. These tumblers include a heating system complemented by an insulated jacket wrapping the tumbling drum. The system employs a circuit filled with glycol to efficiently distribute heat. In addition, an external box with fittings allows facilities to connect the food tumblers to existing steam installations or an autonomous steam generator.




MA-G and MAH-G series tumblers include an insulated cooling jacket around the drum perimeter, a glycol circuit powered by an internal circulating pump, a second drum insulation jacket to minimize thermal losses, and either an external cooling unit or the ability to integrate the tumbler cooling system into existing plant cooling systems. No matter the end product, liquid and solid food elements travel the inside surface of the tumbling drum along spiral blades, which are specially engineered to maximize rubbing while minimizing trauma to solid food pieces.

MA-PSCH horizontal vacuum tumblers can control the temperature of contents with an integrated cooling system. The cooling system comprises an insulated cooling jacket around the drum perimeter with a glycol circuit powered by an internal circulating pump, an external cooling unit, and a second drum insulation jacket to minimize thermal losses. The cooling function of MA-PSCH series tumblers also optimizes the binding of meat proteins.

The Nowicki MA-2800 PSCH combines the simplicity and advantages of traditional horizontal tumblers with the high-loading capacities of tilted tumblers. The vacuum meat tumbler’s simple, reliable, and compact design offers ease of use and versatility for processing an array of end products.

Nowicki MAH PSCH/D series vacuum meat tumblers include a defrosting function to let plants marinate meat from frozen blocks with one machine. For defrosting, MAH PSCH/D series vacuum meat tumblers include a heating system complemented by an insulated jacket wrapping the tumbling drum. In addition, an external box with fittings allows facilities to connect meat tumblers to existing steam installations or an autonomous steam generator. MAH PSCH/D series vacuum meat tumblers also feature an insulated cooling jacket around the drum perimeter and an external cooling unit. These vacuum meat tumblers can also brew, cook, cure, massage, and cool.

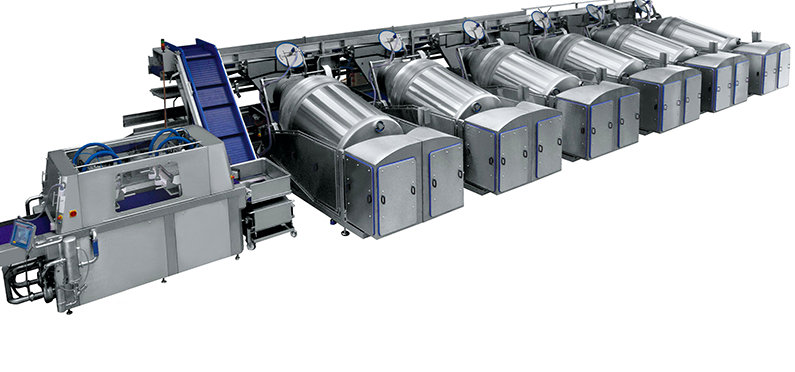

Tumblers from BAK Food Equipment can be combined with loading systems, Supervisory Control and Data Acquisition (SCADA), and modern process automation to create a fully automated continuous processing tumbling line. A fully integrated multimachine solution reduces reliance on manual labor by automating the transport, loading, and unloading of meat.

Nowicki tumblers are now available from BAK Food Equipment with a range of customizations for use in a variety of applications. Whether you run a small-batch facility or a larger commercial operation, our experts can recommend the right tumbler to fit your unique needs.
