Flexible and efficient: automated line changeovers for the InnoPET TriBlock from KHS

The example of KHS’ InnoPET TriBlock stretch blow molder/labeler/filler block illustrates how automated format changeovers can be successfully implemented. And it shows that beverage producers can combine maximum flexibility with a high level of efficiency.

Flexible and efficient: automated line changeovers for the InnoPET TriBlock from KHS

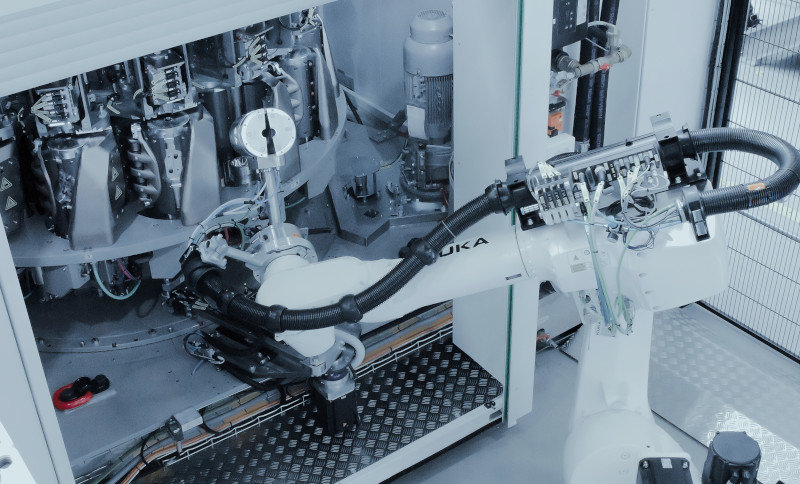

The robot needs just 41 seconds per stretch blow molding station for automatic conversion of the side mold shells and base mold during ongoing production.

  • Up to 70% time saved compared to manual changeovers
  • Molds changed by robots on the stretch blow molding module
  • Automated adaptation to the label gluing height and bottle diameter
  • Format changeovers on the filling module are fully automated and only take a few seconds

PET lines today are very rarely configured exclusively from individual machines. Instead, beverage producers want a turnkey system with a small footprint, shorter conveying segments and a reduced maintenance effort and – first and foremost – short changeover times. As part of the holistic, automated line changeovers on its PET lines the InnoPET stretch blow molder, labeler and filler TriBlock satisfies these high demands.

Thanks to the new KHS InnoPET iflex automation concept beverage bottlers can now save up to 70% of the time needed for manual changeovers. To this end, various functions were developed for the different segments on the InnoPET TriBlock that considerably increase the level of automation and make manual intervention largely superfluous with a few clicks on the HMI.

Format changeovers by robot
PET bottles are produced in the stretch blow molding module. When formats are scheduled for a changeover, the iflex first triggers the automatic loading of recipes for the heating profile, blow pressure, preform conveying and inspection technology.

The most important new feature on this machine is the mold changeover when the new batch requires a different bottle size or shape. Here, the switch is made with the help of a robot that changes the two side mold shells and base mold fully automatically and very quickly during ongoing production. It removes the previous molds from the stations, places them in the mold set magazine, takes out the new molds and slots them back into the stations without any need for action from the operator. The robot needs just 41 seconds per station for this short, fully reproducible procedure. The time for manual intervention is thus reduced from a previous 95 to just eight minutes. This is further facilitated by automatic bottle base detection adjustment at the blow wheel transfer star with the help of several sensors. All the operator has to do by hand is to start the format changeover and later start the new production run.

Less manual intervention
The time and effort needed for manual work by the operator is also reduced in the labeling module. This is chiefly thanks to automatic adaptation of the label gluing height and bottle diameter. The operator still carries out the toolless changeover of the vacuum drum, brushes and bottle guide parts, however. Nevertheless, two labeling stations can now be converted within 20 minutes.


Flexible and efficient: automated line changeovers for the InnoPET TriBlock from KHS

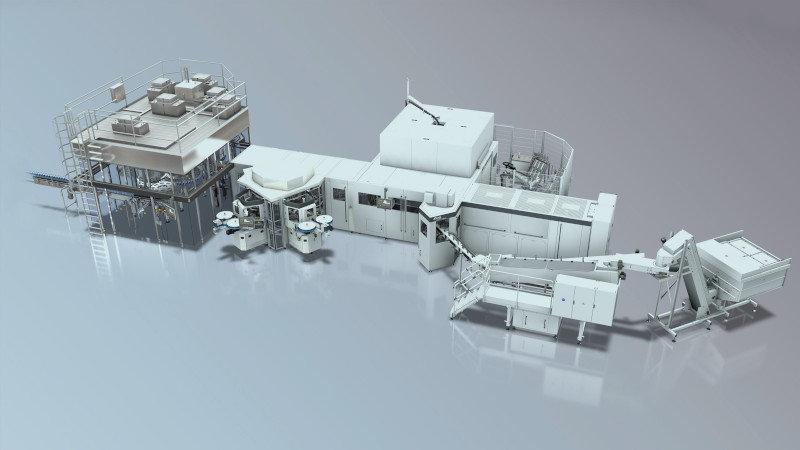

The InnoPET TriBlock stretch blow molder/labeler/filler block is part of the first line type to have been equipped with the automated InnoPET iflex changeover option by KHS.

At the press of a button
In the filler module conversion is fully automatic. Firstly, this avoids handling errors by the operator, and secondly, it prevents the risk of bacterial or microbiological contamination by people entering the hygiene area that would then need foam cleaning. This would delay the changeover by around 30 minutes.

The key components relevant to automatic changeovers are the guides from the filler infeed to the capper discharge that need to be set to the bottle diameter and height. Conical base guides or bottle pockets are used here, for example, where the containers are fixed by simple height adjustment as in a funnel. The discharge conveyor is vertically adjusted by a servomotor instead of being manually cranked; the same goes for the horizontal adjustment of the railings. What’s more, the bottle caps are also changed over automatically, such as when a new beverage features a different cap color from the previous one.

Up to 70% quicker
We can see just how important the new iflex options are on the KHS InnoPET TriBlock in particular when it comes to highly flexible beverage filling if we take a look at the total time saving: depending on the specific changeover routine on site, this amounts to approximately 95 minutes. The remaining manual tasks only take eight minutes on the stretch blow molding module and 20 minutes on the labeling module. On the filling module format changeovers have been fully automated and are completed without intervention in a matter of seconds. All told, changeovers are now implemented in less than a third of the time previously required, allowing beverage producers to look forward to a high degree of flexibility and efficiency.

Innoline Flex Control: everything under control
The Innoline Flex Control line management system is essential if the iflex is to function properly and its potential be fully exploited. It takes over the tasks of line and order management from the beverage producer’s ERP system and orchestrates the automatic changeover of the machines. The basic idea is to help the operator to always do exactly the right thing.

By integrating the Innoline Flex Control web GUI into the HMI, data is displayed on the machine operator panel. The operator sees which processing program must be selected when and which materials are needed where to produce the respective current version of the order sequence that has been tactically planned by the system. With the automated iflex variant, this is triggered by the simple press of a button. On the guided iflex version the system clearly prompts the operator through the various steps and provides straightforward instructions for all action that needs to be taken manually.
